BLUETTI PV120 Order — RM 999

120W Solar Panel

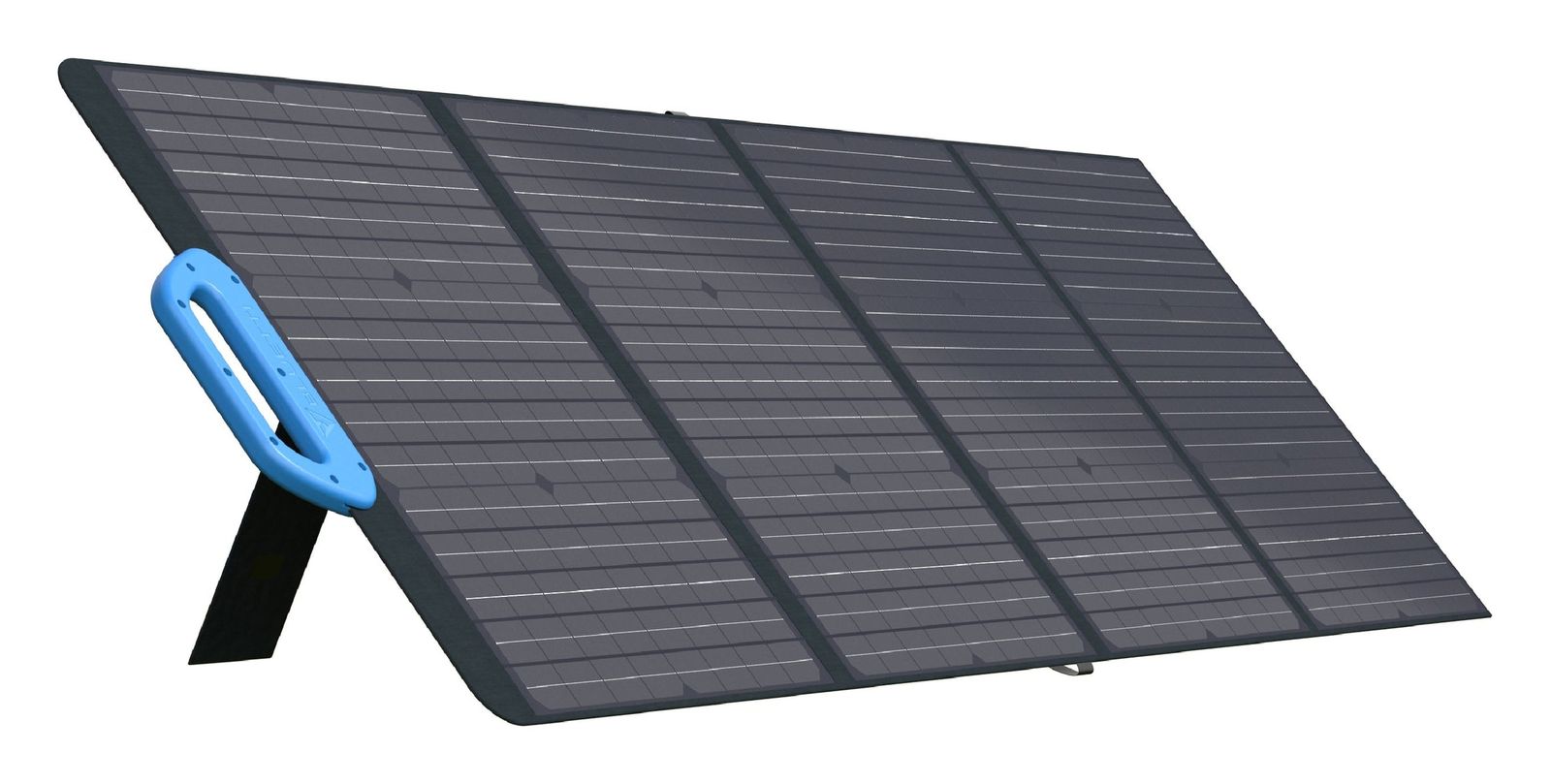

BLUETTI PV120

Folding 120W panel with Standard MC4 output, IP65.1

Order on WhatsAppSpecs

RM 999

Out of stock

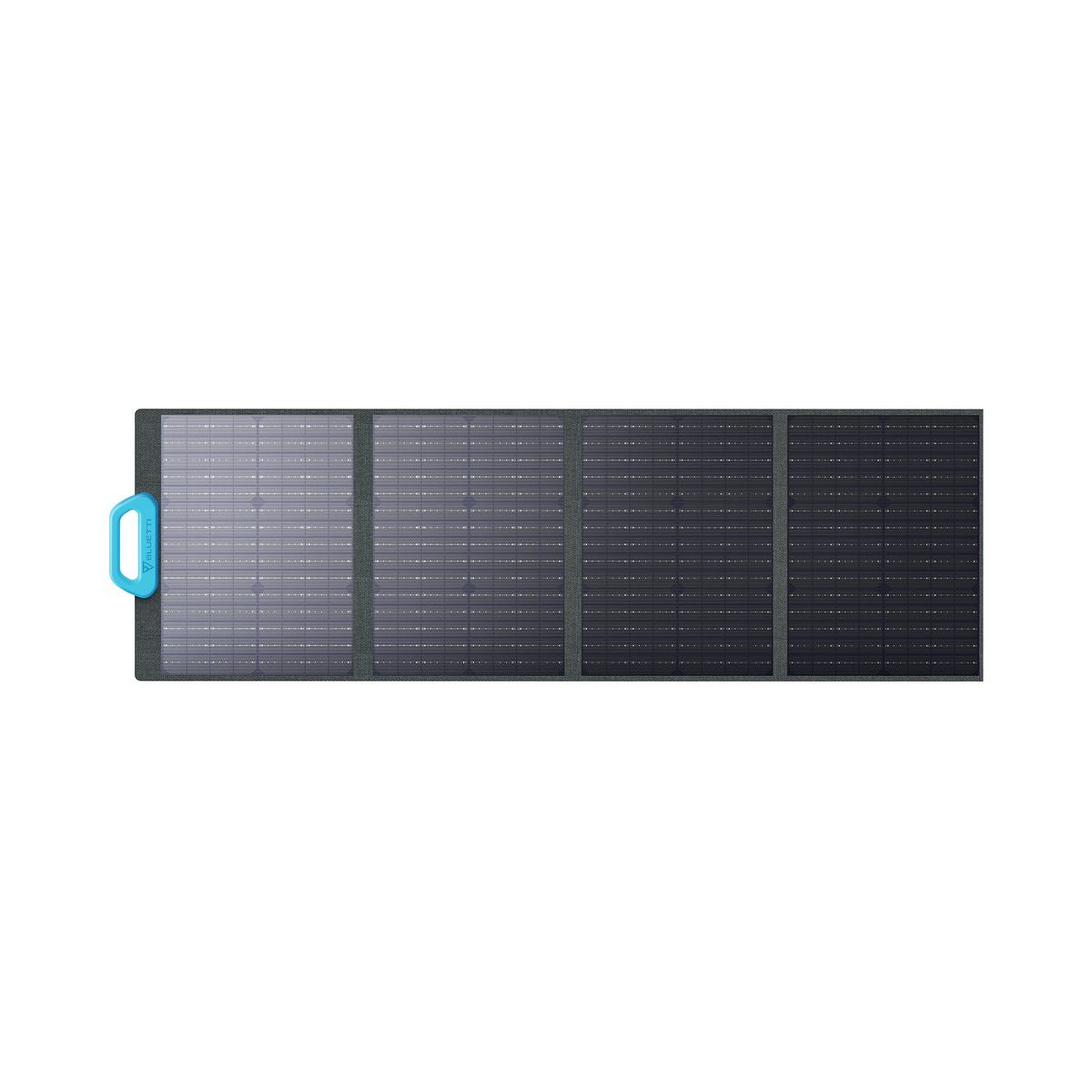

120 W folding solar panel

The PV120 is rated at 120 W, with cells of up to 23.4% efficiency.1 Its open-circuit voltage is 24.4 V and its short-circuit current 6.43 A, the two figures to check against a station's solar input.1

Stations it suits

BLUETTI names the AC50P and AC200P L as working with this panel.23 Going by each station's published solar input range, one panel also suits the Premium 30 V2, AC70P, Premium 100 V2, AC180P, AC240P and Premium 200 V2; the Premium 30 V2 takes solar through XT60, so it needs an MC4-to-XT60 cable.4

Build and connection

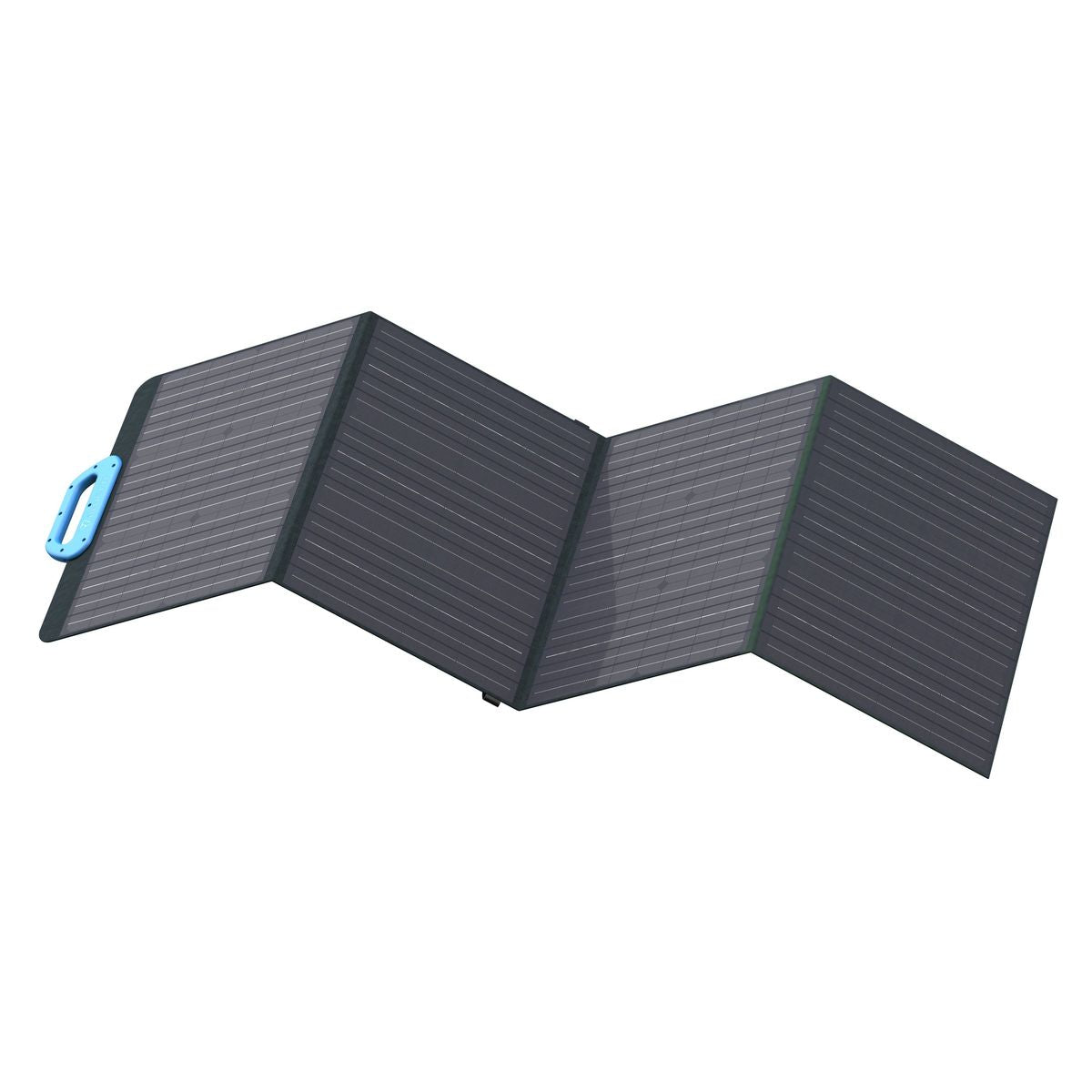

It weighs 5.7 kg and folds to 533 x 470 mm.1 BLUETTI rates it IP65 at the junction box, and it connects through standard MC4 connectors on a 3 m cable.1

  1. BLUETTI listing, https://www.bluettipower.com.au/products/bluetti-pv120-solar-panel, read 4 Oct 2026.
  2. BLUETTI listing, https://www.bluettipower.com.au/products/bluetti-ac50p-portable-power-station (FAQ Q3), read 4 Oct 2026.
  3. BLUETTI listing, https://www.bluettipower.com.au/products/ac200pl-portable-power-station (FAQ Q5), read 4 Oct 2026.
  4. Our check: the panel's open-circuit voltage against each station's published solar input range and maximum, from BLUETTI's station listings read 4 Oct 2026.

Pairs With

Specifications

BLUETTI's published figures for the 220–240 V edition, read 4 Oct 2026.

Electrical

Rated power
120 W1
Open-circuit voltage (Voc)
24.4 V
Short-circuit current (Isc)
6.4 A
Max-power voltage (Vmp)
19.6 V
Max-power current (Imp)
6.1 A
Efficiency
up to 23.4% (cell)
Connector
Standard MC4

Build

Weight
5.7 kg
Folded
533 x 470 mm (21 x 18.5 in)
Unfolded
533 x 1652 mm
Water resistance
IP65 (junction box only; FAQ Q2)
Cable
3 m

Bahasa Melayu

Ringkasan BLUETTI PV120

BLUETTI PV120: kuasa 120 W. Angka daripada senarai rasmi BLUETTI.

Tekan Order untuk bertanya di WhatsApp. Stok dan harga disahkan secara bertulis sebelum pembayaran.

  1. BLUETTI's published specification for the PV120, AU listing, read 4 Oct 2026. BLUETTI does not publish the test conditions behind it.
