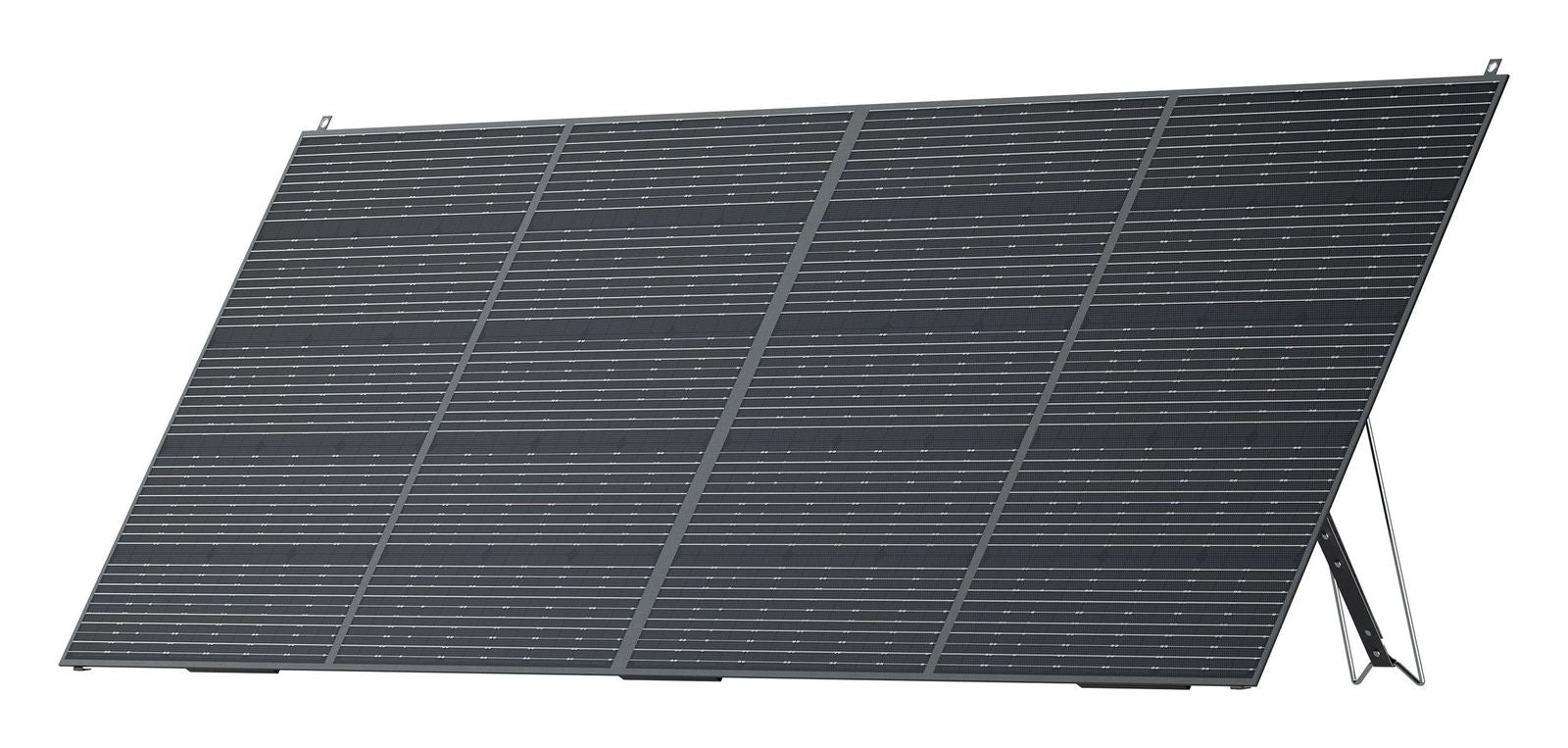

420 W folding solar panel
The PV420 is rated at 420 W, with cells of up to 23.4% efficiency.1 Its open-circuit voltage is 44.3 V and its short-circuit current 12.2 A, the two figures to check against a station's solar input.1
Stations it suits

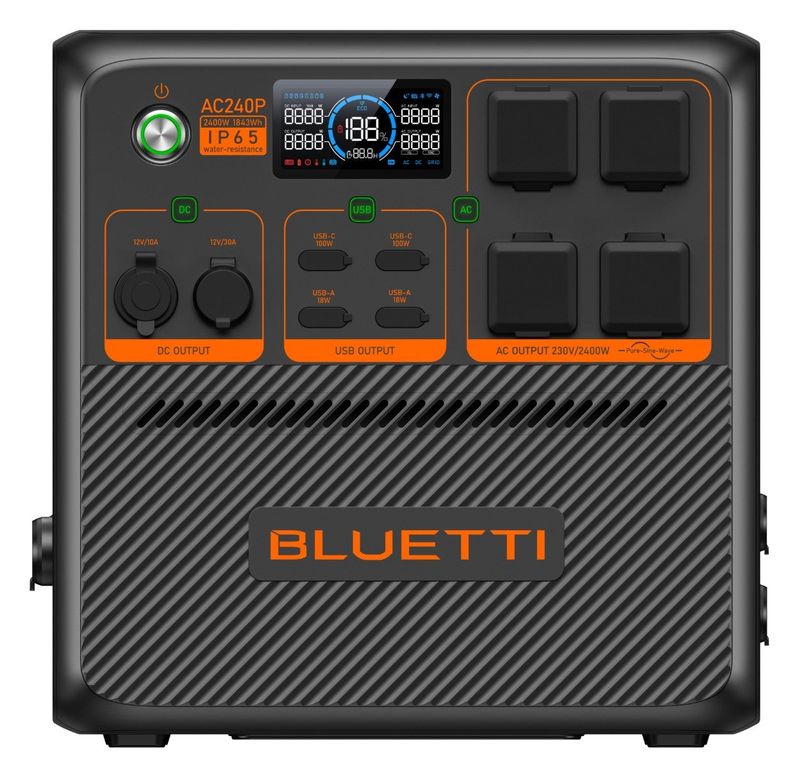

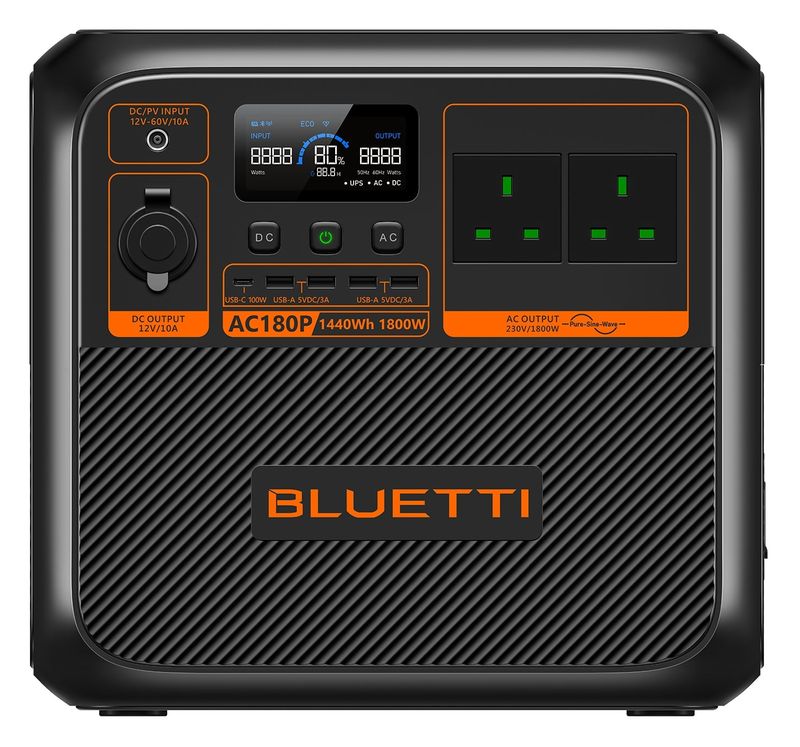

BLUETTI names the AC180P as working with this panel.2 Going by each station's published solar input range, one panel also suits the AC70P, Premium 100 V2, AC240P, Premium 200 V2 and AC200P L.3
Build and connection

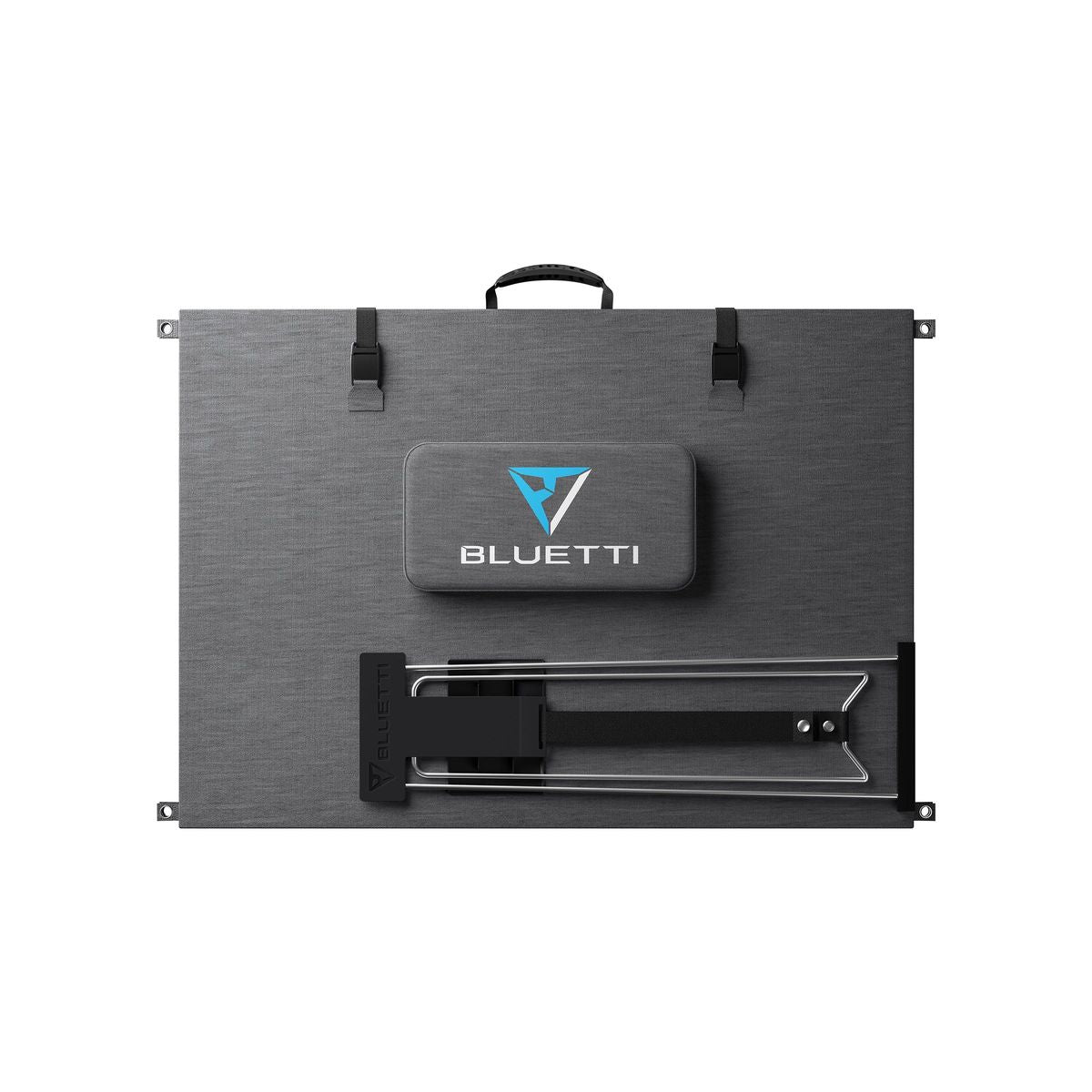

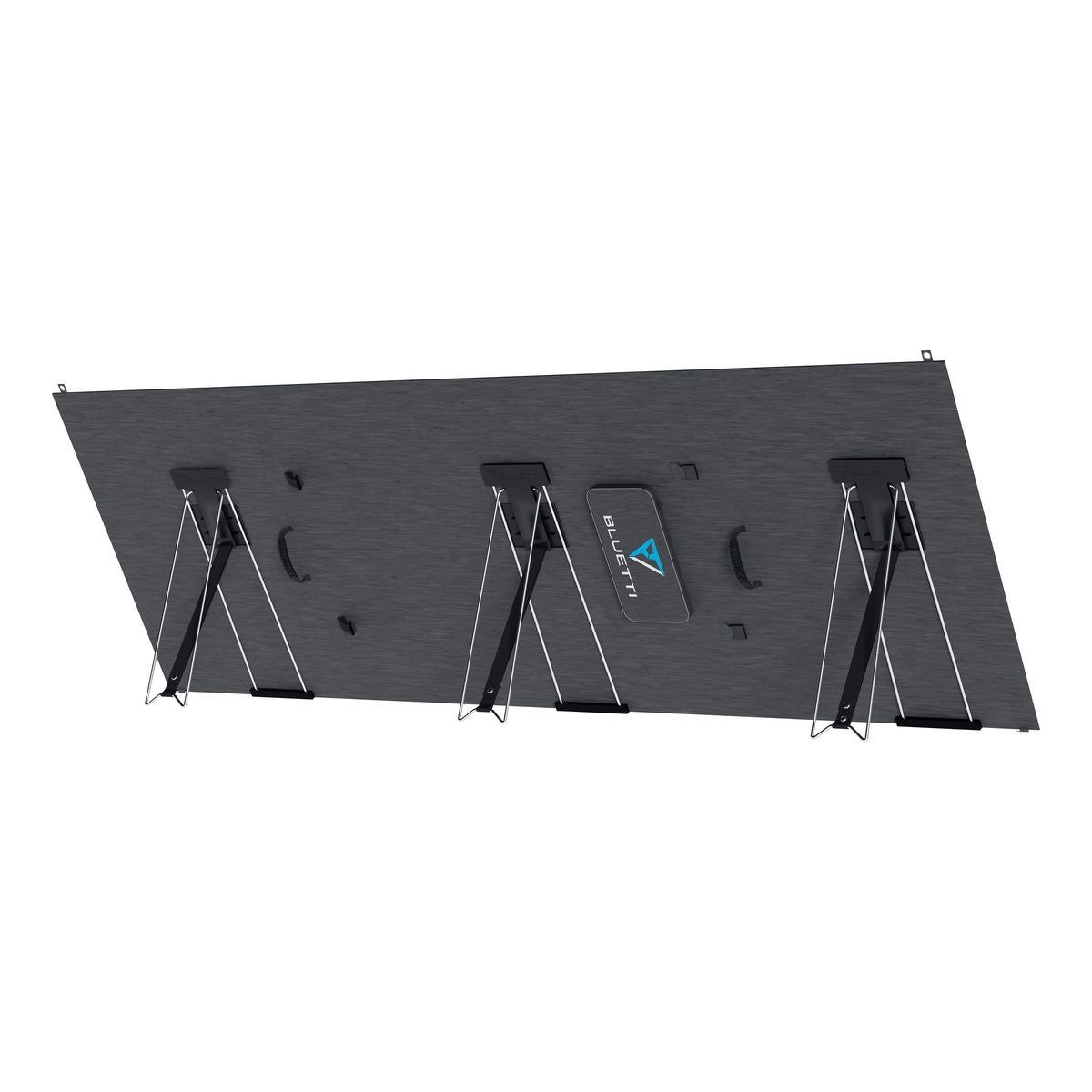

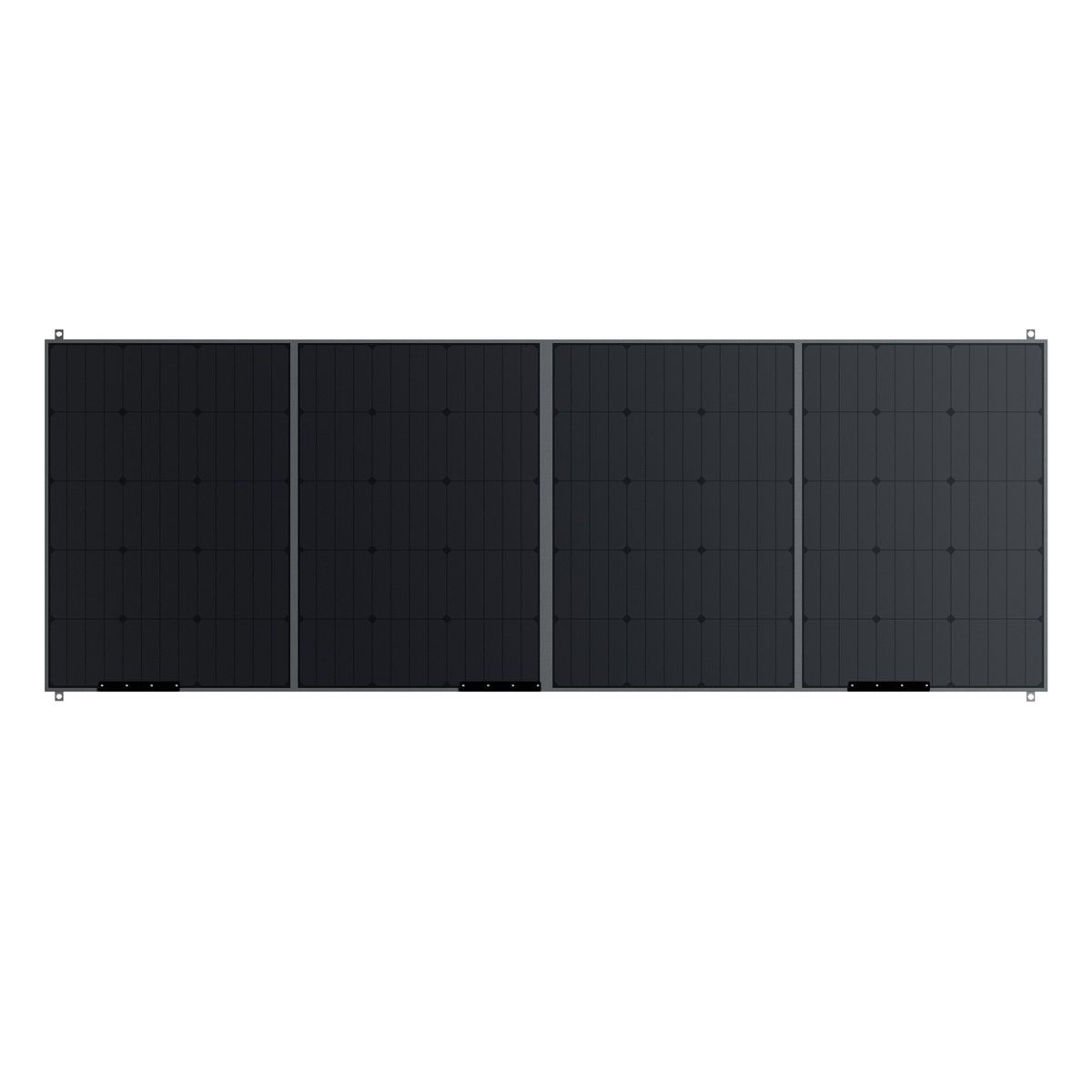

It weighs 14 kg and folds to 975 x 660 x 45 mm.1 It connects through standard MC4 connectors on a 3 m cable.1
- BLUETTI listing, https://www.bluettipower.com.au/products/bluetti-pv420-solar-panel, read 4 Oct 2026.
- BLUETTI listing, https://www.bluettipower.co.uk/products/ac180p-portable-power-station (FAQ Q8), read 4 Oct 2026.
- Our check: the panel's open-circuit voltage against each station's published solar input range and maximum, from BLUETTI's station listings read 4 Oct 2026.
Specifications
BLUETTI's published figures for the 220–240 V edition, read 4 Oct 2026.
Electrical
Rated power
420 W1
Open-circuit voltage (Voc)
44.3 V
Short-circuit current (Isc)
12.2 A
Efficiency
up to 23.4% (cell)
Connector
Standard MC4
Build
Weight
14 kg
Folded
975 x 660 x 45 mm
Unfolded
2675 x 975 mm
Cable
3 m
Bahasa Melayu
Ringkasan BLUETTI PV420
BLUETTI PV420: kuasa 420 W. Angka daripada senarai rasmi BLUETTI.
Tekan Order untuk bertanya di WhatsApp. Stok dan harga disahkan secara bertulis sebelum pembayaran.
- BLUETTI's published specification for the PV420, AU listing, read 4 Oct 2026. BLUETTI does not publish the test conditions behind it.
